A High Yield Strength steel for welded and weight – saving structures

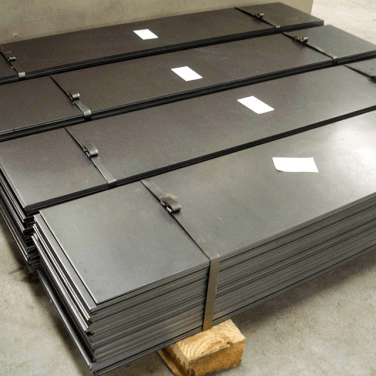

Bozhong® Ultra 960 is a quenched and tempered steel for structure with higher strength. Thanks to a minimum yield strength of 960 N/mm² (140 ksi), Bozhong® Ultra 960 enables to make weight savings or support higher stresses and thus carry higher payload.

With a good quality of steel making process, an adapted chemical analysis (low alloying content) and an excellent precision in our fabrication process (thickness tolerance, uniform mechanical characteristics), Bozhong® Ultra 960 is easy to machine, to bend and to weld which simplify production and maintenance.

By using Bozhong® Ultra 960 and thus thinner plate in welded structures, you limit preheating conditions, you decrease quantity of consumables, welding time and so production costs.

Standards
Bozhong® Ultra 960 fulfills the requirements of S960QL according to EN 10025-6 standard, last edition.

Chemical Analysis
Typical values (weight %)
C Mn Si Cr Mo P S V Ni Cu Al
.20 1.70 .80 1.50 .70 .020 .010 .12 2.0 .50 .018 to .100

Carbon Equivalent
Thickness range – mm (*) C.Eq CET
6 – 50 (.24“ – 2“) ≤ .59 ≤ .41
50.1 – 105 (2’’-4.2’’) ≤ .70 ≤ .45

Mechanical Properties
Thickness Y.S. 0.2 N/mm²(ksi) UTS N/mm²(ksi) Elongation A 5%
6 – 50 (.24“ – 2“) 960 (140) 980 – 1150 (142 – 166) 10
50.1 – 105 (2″ – 4.2″) 900 (130) 940 – 1100 (136 – 167) 10
Ultra High Sstrength (960mpa)
